Warranty: 1 Year

Model: YJPV Series

Control Mode: PWM

Protection Class：IP68

Customization: Available

Sealing Pressure: 25barG

Voltage Range：18~32VDC

Connector Model：DT06-2S

Operating Pressure: 0~20barG

Rated Operating Voltage：24VDC

Working Frequency：300~1000HZ

Medium Temperature：-40℃~120℃

Leakage: <0PPM (for Hydrogen Medium)

Solenoid Valve Structure: Normally Closed

Interface Size: Standard Dimensions/Customizable

Flowing Media: Hydrogen, Nitrogen, Oxygen, Natural Gas, Air, Water, Methanol, Liquid Ammonia, etc.

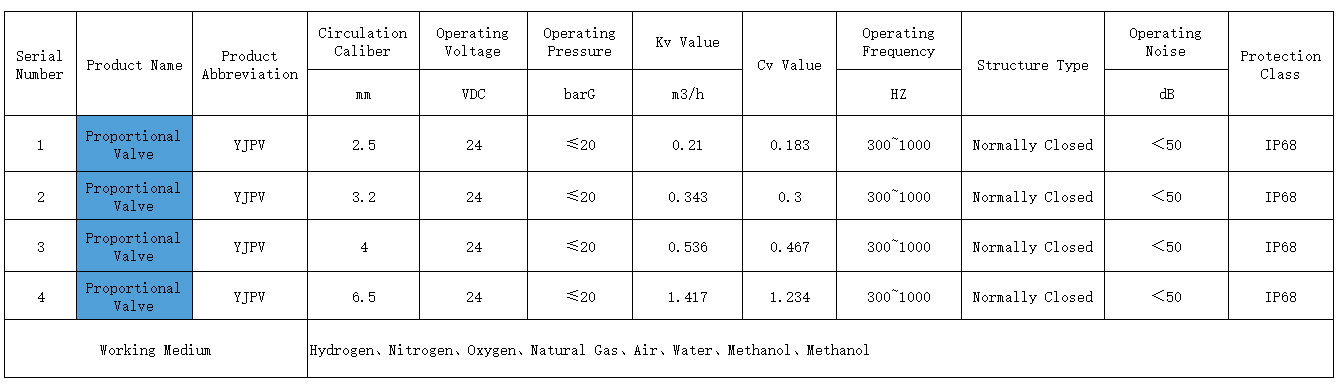

Flow Aperture & Cv Value:2.5mm aperture & 0.18 / 3.2mm aperture & 0.3 / 4mm aperture & 0.46 / 6.5mm aperture & 1.23

Applications: Fuel Cells, Hydrogen Internal Combustion Engines, Petrochemical Industry, Laboratories, Hydrogen Production Equipment
